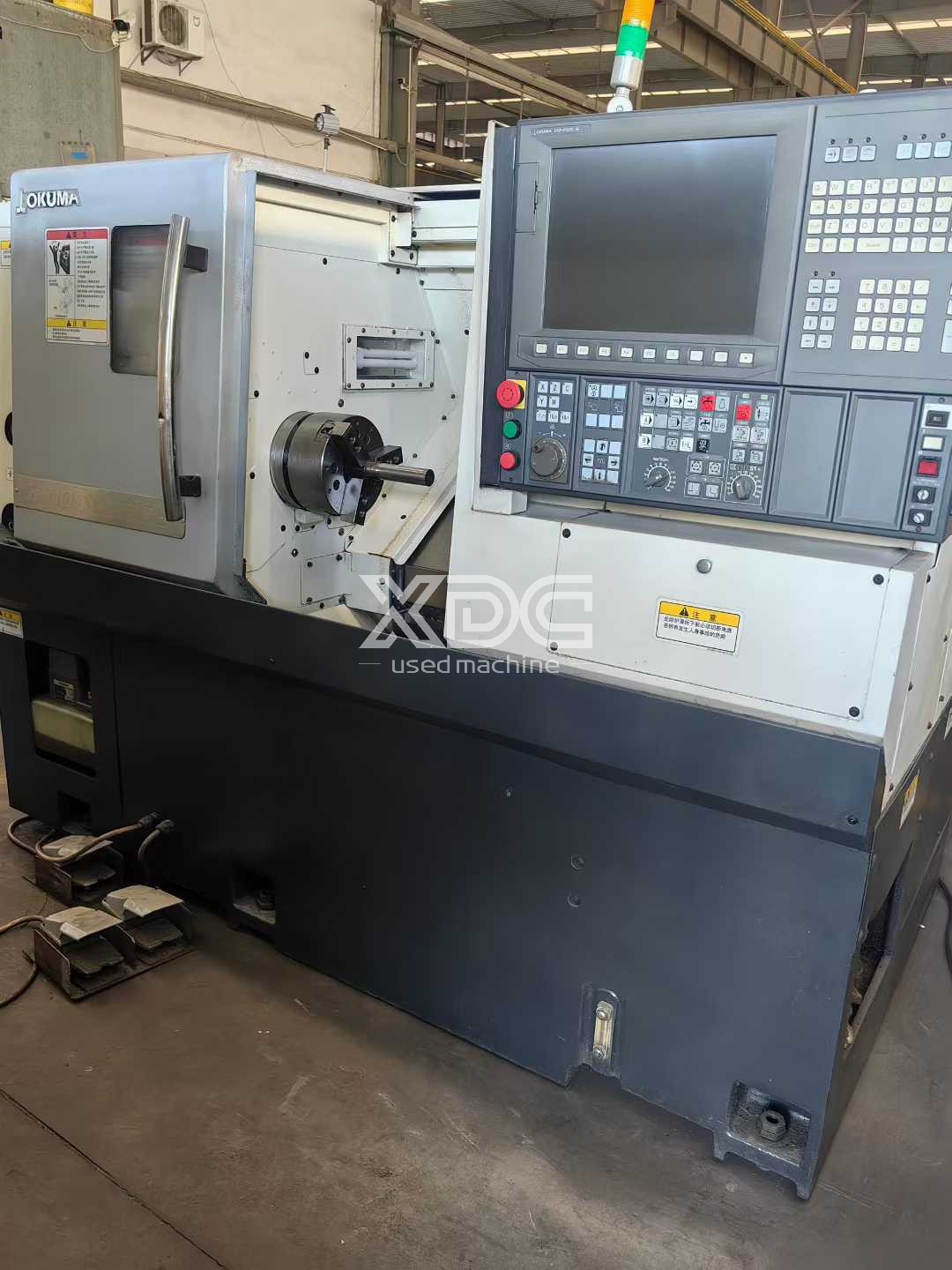

Used TATUNG-OKUMA L250 (L250II-e L×500 model)

The core parameters of the TATUNG-OKUMA L250 (L250II-e L×500 model) are as follows:

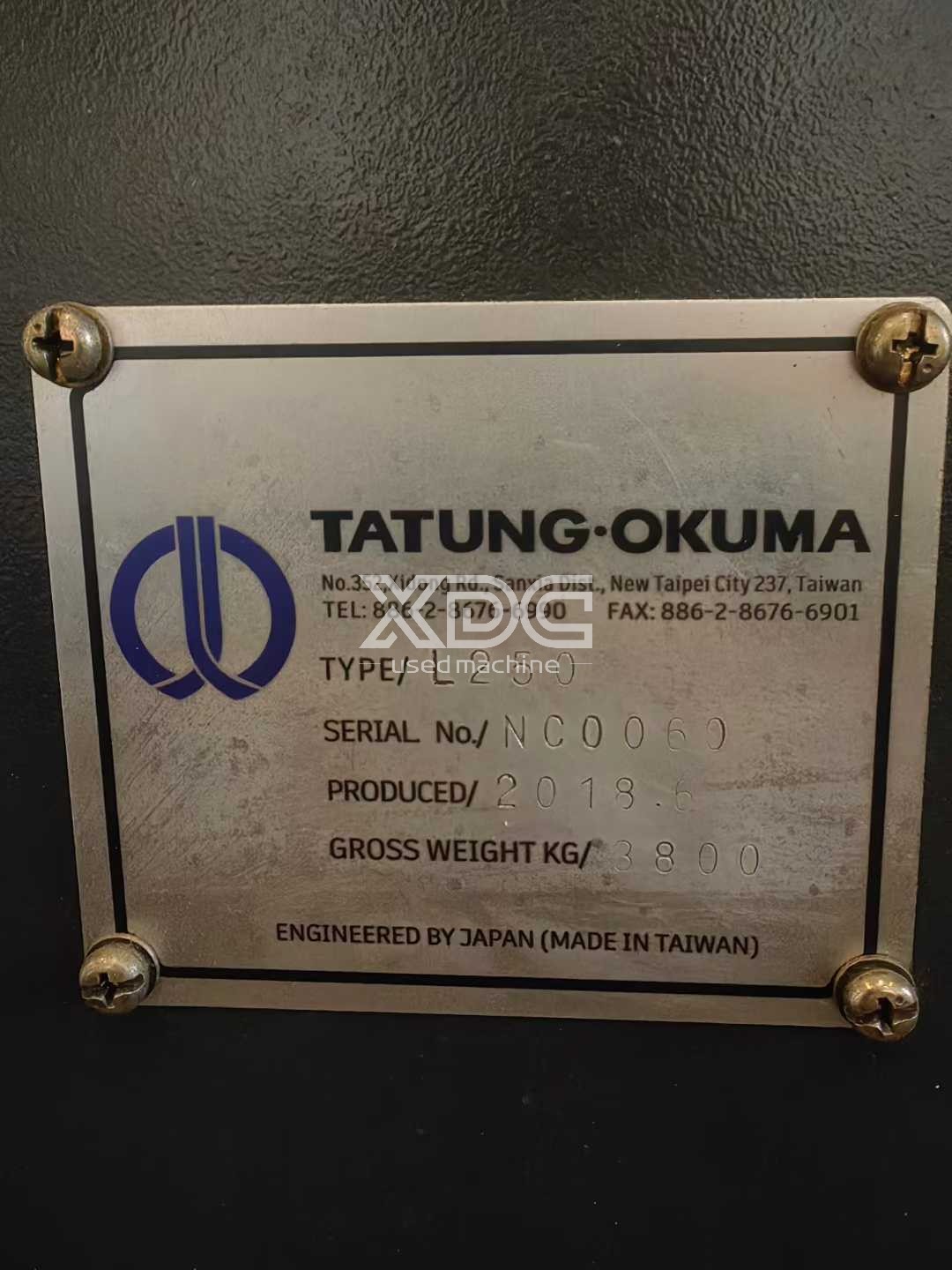

1. Basic Information

- Model: L250

- Serial Number: NC0060

- Production Date: June 2018

- Total Weight: 3800 kg

- Design: Okuma Technology, Japan; Manufacturing: Taiwan, China

2. Machining Specifications

- Chuck Size: 10″

- Turning Diameter: Ø390 mm (Ø310 mm)

- Workpiece Length: 500 mm

- Spindle End Shape: JIS A2-8

- Spindle Diameter: Ø120 mm

- Spindle Through-Hole Diameter: Ø80 mm

- Spindle Speed: 25～3000 rpm

3. Axis Travel and Feed

- X-axis Travel: 220 mm (195+25)

- Z-axis Travel: 520 mm

- X/Z axis rapid traverse speed: 25 m/min, 30 m/min

- X/Z axis feed rate: 0.001～1000 mm/rpm

4. Configuration and Power

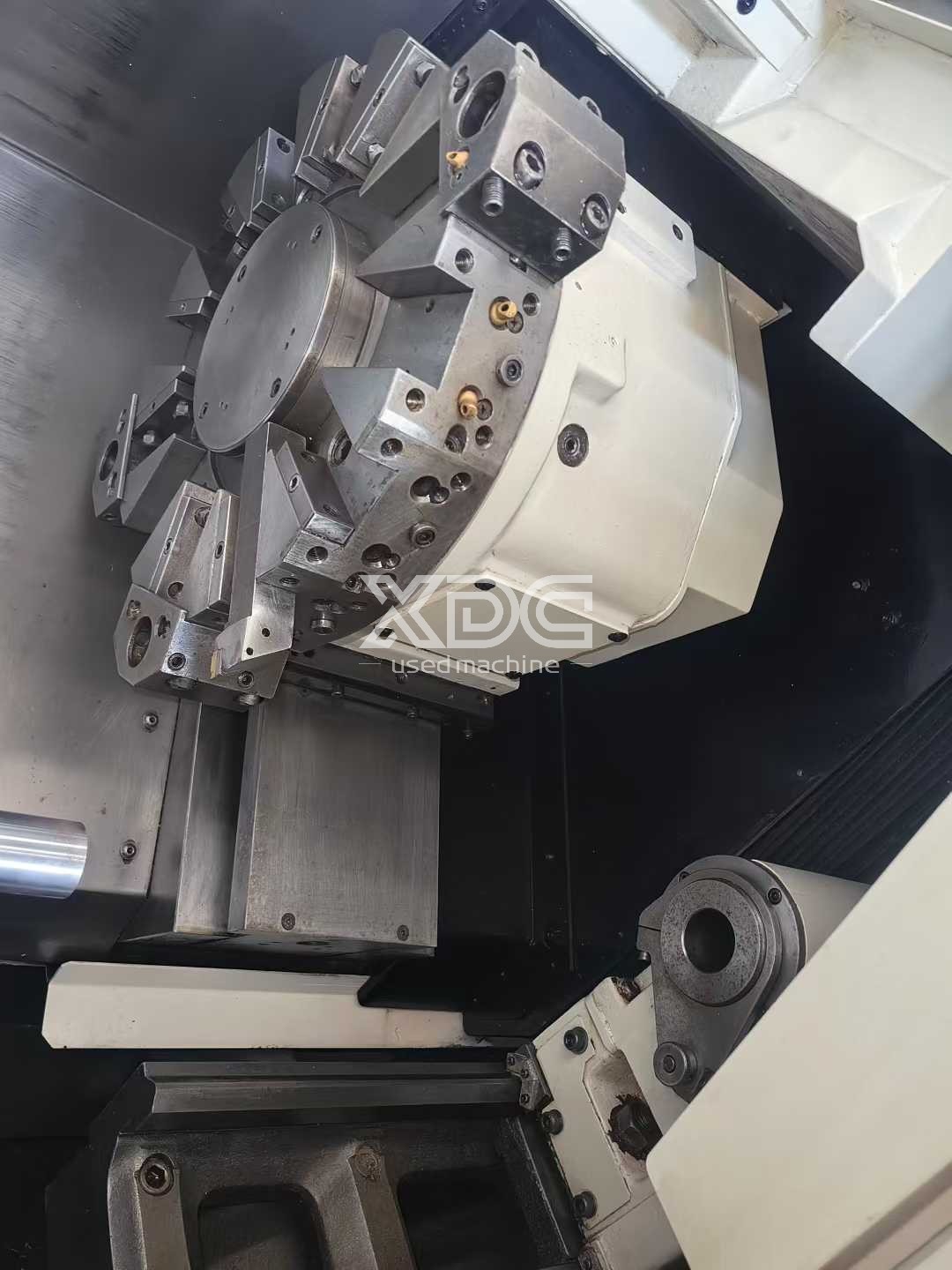

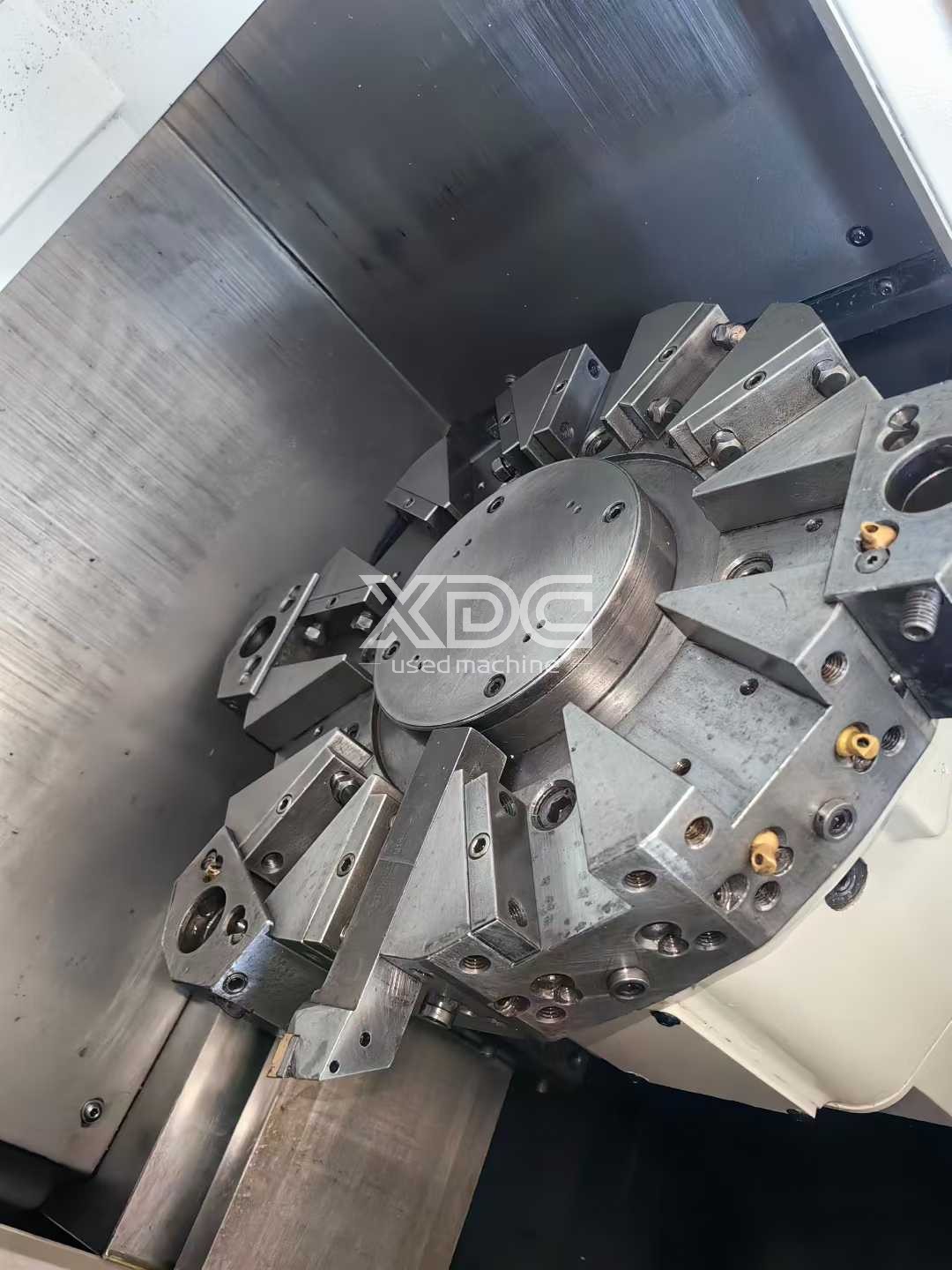

- Tool post type: V12 CNC tool post

- Tailstock: Morse No. 5
